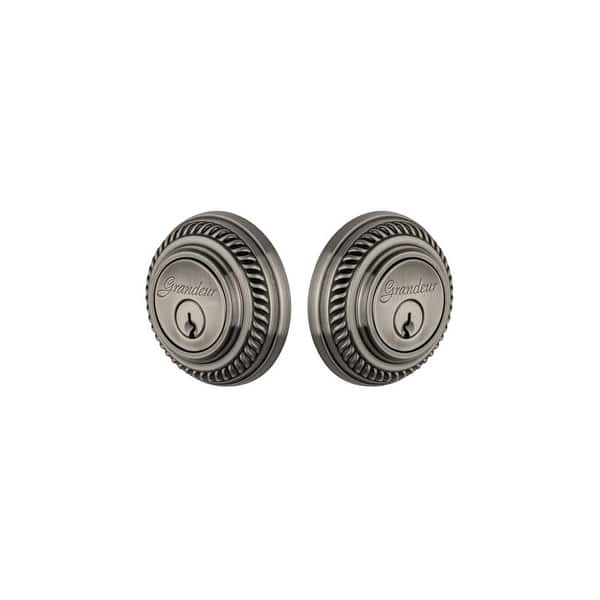

Grandeur Newport Solid Brass Rose Keyed Entry Double Cylinder Deadbolt

Double Cylinder Function: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.

Features:

• Crafted with solid metal
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/4" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not meet criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States

Product Technologies:

• Solid metal Construction: Grandeur rosettes and backsets are forged from a solid piece of metal. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/4" to 2-1/4"
• Handing: Reversible, Left or Right
• Trim Height: 2-11/16"
• Trim Width: 2-11/16"
• Projection: 3/4"
• Interior Projection: 3/4"
• Latch Faceplate: Square Corner
• Locking Mechanism: Thumbturn
• Cylinder: 5 Pin C
• Material: metal
