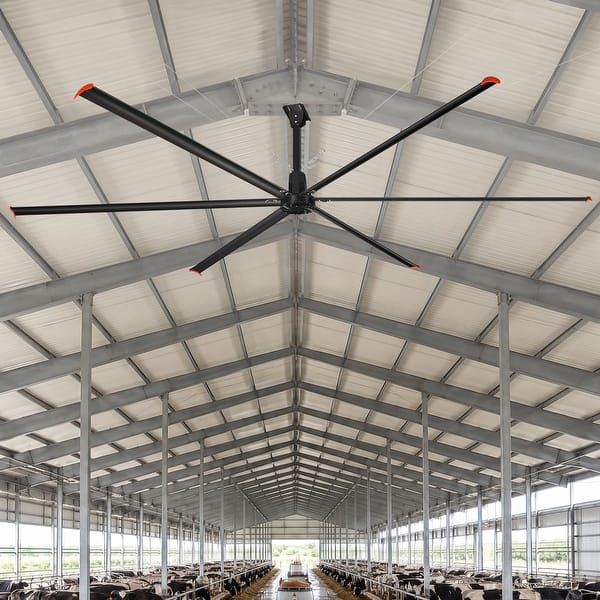

240"/264"/288" HVLS Industrial Ceiling Fan 120V 1-Phase with Aluminum Blades for Warehouse, Factory, Gym, Barn

Designed for demanding commercial and industrial environments, this HVLS (High Volume, Low Speed) Ceiling Fan delivers exceptional airflow while operating with remarkable efficiency and ultra-low noise. Powered by a high-performance PMSM Direct Drive Motor and equipped with aviation-grade aluminum blades, it provides reliable year-round air circulation for warehouses, factories, gymnasiums, aircraft hangars, agricultural facilities, and other expansive indoor spaces. With forward and reverse operation, multiple speed settings, and an intelligent controller, this industrial fan improves comfort, reduces energy costs, and creates a healthier working environment.

Key Features

• High-efficiency PMSM direct drive motor for powerful and energy-saving performance
• Available in multiple large diameters to suit different commercial and industrial spaces
• Forward and reverse rotation for year-round air circulation and temperature balancing
• Multiple speed settings for customized airflow in various applications
• Whisper-quiet operation with brushless permanent magnet technology
• Aviation-grade aluminum alloy blades for strength, corrosion resistance, and long service life
• Reinforced safety cable system for enhanced installation stability and operational safety
• Industrial controller with speed adjustment, timer, and forward/reverse functions

Specifications

• Motor Type: PMSM Direct Drive Permanent Magnet Synchronous Motor
• Power Supply: 120V / 1PH / 60Hz
• Blade Quantity: 6 Blades
• Blade Material: Aluminum Alloy
• Noise Level: 38 dB
• Downrod Lengths Included: 25.5 in. & 39.5 in.

#Model 20 ft (240 in.)

• Motor Power: 1.1 kW
• Rotation Speed: 15–65 RPM
• Maximum Airflow: 405000 CFM
• Recommended Coverage Area: Up to 15,000 sq. ft.

#Model 22 ft (264 in.)

• Motor Power: 1.1 kW
• Rotation Speed: 15–60 RPM
• Maximum Airflow: 423776 CFM
• Recommended Coverage Area: Up to 14,000 sq. ft.

Model 24 ft (288 in.)

• Motor Power: 1.1 kW
• Rotation Speed: 15–55 RPM
• Maximum Airflow: 459,000 CFM
• Recommended Coverage Area: Up to 30,000 sq. ft.

Applicable Occasions

Perfect for warehouses, manufacturing facilities, logistics centers, aircraft hangars, gymnasiums, sports complexes, convention centers, agricultural buildings, workshops, retail warehouses, and other large commercial or industrial spaces requiring powerful, energy-efficient air circulation. The reversible airflow helps keep occupants cool during summer while redistributing warm air in winter for improved year-round comfort and lower HVAC costs.

Notes

• Professional installation is recommended.
• Ensure the building structure is suitable for supporting a large industrial ceiling fan.
• Install according to the minimum clearance and mounting requirements provided in the installation manual.
• Actual airflow performance may vary depending on ceiling height, building layout, and surrounding obstructions.
• Please select the appropriate fan size based on your facility dimensions and required coverage area.
